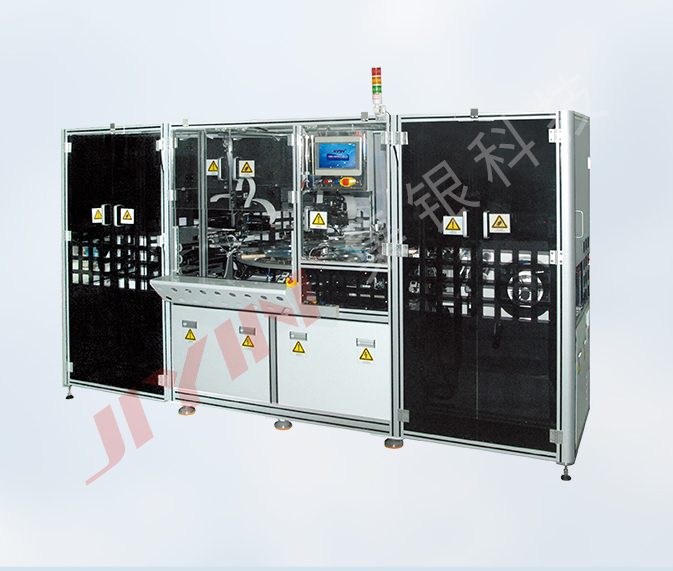

JM-962 Backlight automatic assembly machine before the process

Product pictures Application show Product specification Functional description Print
展示
1, power: single-phase AC220V / 50HZ / 5000W
2, the operating environment: 23 ℃ ± 5 ℃, 40% to 95%, humidity with no Significant dust
3, the working pressure: 0.4 ~ 0.7Mpa, dry gas source
5, the program control: PLC +10.4 inch touch screen;
6, for the size: 4 to 7 "
7, the video system: 3 sets of 2CCD automatic image processing system, a set of automatic detection system gap
8, the pressure range: 10N ~ 200N
9, the fitting accuracy: ± 0.05mm /
10, T / T: ≦ 4.0S
11, the body size: 3900mm (L) * 1900mm (W) * 2200 (H)
12, Weight: 4000KG
1, in the backlight before the automatic assembly process;
2, the device will be plastic box, reflective film, protective film, light guide plate, ledFPC automatically assembled as one, plastic frame, FPC manual discharge, reflective film, protective film, light guide plate automatic feeding, the equipment and then automatically assemble, Belt line discharge. , JM-962 backlight before the automatic assembly machine application process
Features:
1, high-precision fit.
2, fast, smooth, high precision.
3, LED light guide plate gap automatic detection function
5, high-precision image automatic alignment system.
6, the machine high rigidity structure.
